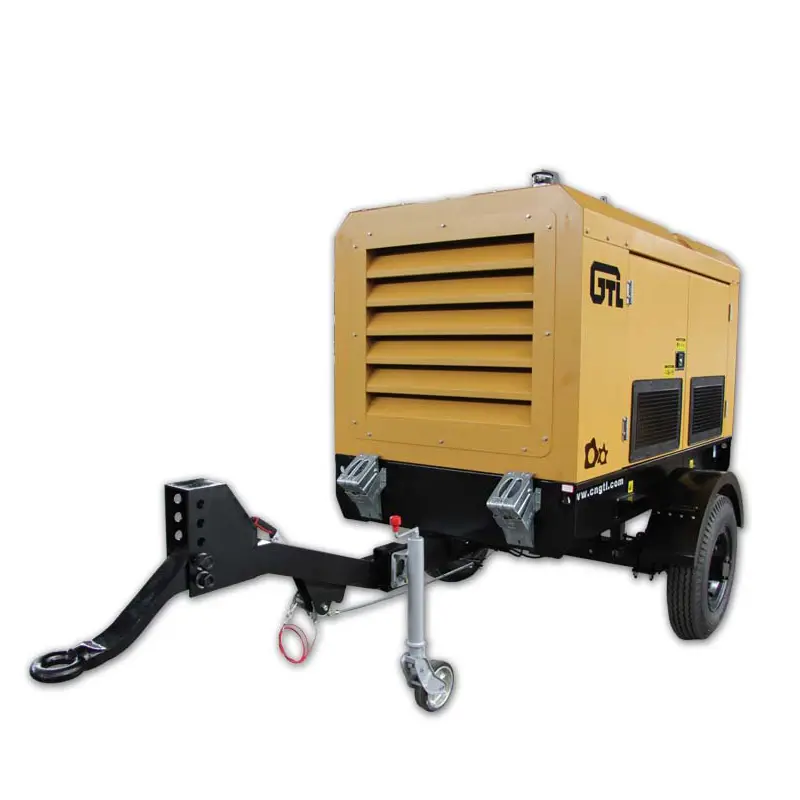

Portable 185cfm 8bar Compressor Diesel Engine Driven Screw Air Compressor For Drilling

Our offer of diesel mobile air compressors

From small, over medium to large-sized air compressors, you can select the compressor that fits your needs. The essential companion for companies that need to take the tools to perform their work with them – wherever they go. Wherever you require compressed air, our compressors are optimized for easy transport and maneuverability. Towed and transported by vehicles across the globe, our range of air compressors is ready to go, and ready to move – when you are. Developed in conjunction with our customers, you can be assured of the most compact size and balanced design coupled with superior levels of efficiency.

Product Detail

Name of produce		Screw Air Compressor with trailer
Place of Origin:		Xiamen, China
Type:		Screw
Colour		customer’s color
Warranty time		24 months or 2000 hours
Air delivery	m3/min	5
	cu.ft/min	182
Discharge pressure	bar	7
	psig	101.5
Manufacture Model		FOXAIR & 4JB1T
Capacity of pressure reservoir (L)		20
Cylinder Number		4
Displacement (L)		2.779
Rotation speed	Rated speed	2200
	Idle speed (r/min)	1400
Rated power (KW [HP]		52
Lubricating Oil ( L )		6.5
Fuel capacity ( L )		90
Voltage of battery		12V
Cooling method:		Water Cooling
Pipe size No.		3/4″ *2pcs
Dimension mm		208010201675
Weight		1565kg

Application areas

Field	Application	Nominal Working Pressure(bar)	Free Air Delivery Range(m3/min)
General Construction (building sites, road maintenance, bridges, tunnels, concrete pumping, and shotcreting)	Hand-held pneumatic breakers	7~14	5~13
	Jackhammers
	Air guns
	Shotcrete equipment
	Pneumatic wrenches
	Nut runners
Ground Engineering Drilling (basement and foundation excavation for apartment blocks and other buildings)	Pneumatic rock drills	7~17	12~28
	Block cutters
	Dewatering pumps.
	Hand-held pneumatic breakers
Utility, Abrasive Blasting (shipyards, steel construction and large renovation jobs)	Sandblasting (remove rust, scale, paint)	7~10	10~22
Blast Hole Drilling (aggregate production for construction stabilization, cement production in limestone quarries and open-pit mining)	Rock drills	14~21	12~29
	Dewatering pumps
	Hand-held breakers
High-Pressure Drilling (drilling for water wells and foundations for high-rise buildings, along with geotechnical/geothermal applications)	Water well drilling	20~35	18~40
	DTH drilling
	Rotary drilling

Selection table

Small Series
Small Series	FAD		Pressure		Engine model	Dimensional Date(mm)
Small Series	m3/min	cfm	Bar	psig		length		width	height	weight(kg)
model	m3/min	cfm	Bar	psig		with tow bar	without tow bar	width	height	weight(kg)
MDS55S-7	1,55	55	7	101,5	D902	2925	1650	1200	1200	600
MDS80S-7	2,24	80	7	101,5	D1005	2925	1650	1200	1200	630
MDS100S-7	2,8	100	7	101,5	V1505	2925	1650	1200	1200	640
MDS125S-7	3,5	125	7	101,5	V1505	3065	1800	1500	1350	810
MDS130S-8	3,7	132	8	116	JE493	3065	1800	1500	1350	810
MDS185S-7	5,18	185	7	101,5	JE493	3200	1900	1740	1660	950
MDS185S-10	5,18	185	10	145	JE493	3050	1900	1740	1660	950

Middle Series (Low&Medium pressure)

Middle Series (Low&Medium pressure)	FAD		Pressure		Engine model	Dimensional Date(mm)
Middle Series (Low&Medium pressure)	m3/min	cfm	Bar	psig		length		width	height	weight(kg)
model	m3/min	cfm	Bar	psig		with tow bar	without tow bar	width	height	weight(kg)
MDS265S-7	7,42	265	7	101,5	JE493	3629	2200	1700	1470	1200
MDS300S-14	8,4	300	14	203	4BTA3.9	3850	2600	1810	2378	1800
MDS350S-10	9,9	354	10	145	4BT3.9	3850	2600	1810	2378	1800
MDS390S-7	11	393	7	101,5	4BTA3.9	3850	2600	1810	2378	1800
MDS390S-13	11	393	13	188,5	QSB4.5	3850	3100	1810	2378	1980
MDS429S-7	12	429	7	101,5	4BTA3.9	3850	2600	1810	2378	1800
MDS429S-14	12	429	14	203	QSB4.5	3850	3100	1810	2378	1980
MDS500S-14	14,1	504	14	203	6BTAA5.9	4550	3600	1810	2378	3100
MDS690S-14	19,3	689	14	203	QSB6.7	4950	3300	2170	2620	3500
MDS720S-10	20,2	721	10	145	QSB6.7	4950	3300	2170	2620	3500
MDS750S-12	21	750	12	174	QSB6.7	4950	3300	2170	2620	3500
MDS786S-10.3	22	786	10,3	149,35	QSB6.7	4950	3300	2170	2620	3500
MDS820S-14	23	821	14	203	6LTAA8.9	5300	4200	2170	2630	5200
MDS850S-8.6	24	857	8,6	124,7	6CTAA8.3	5300	4200	2170	2630	4600
MDS900S-7.1	25,3	904	7,1	102,95	6CTA8.3	5300	4200	2170	2630	4600

Middle Series (Medium&High pressure)

Middle Series (Medium&High pressure)	FAD		Pressure		Engine model	Dimensional Date(mm)
Middle Series (Medium&High pressure)	m3/min	cfm	Bar	psig		length		width	height	weight(kg)
model	m3/min	cfm	Bar	psig		with tow bar	without tow bar	width	height	weight(kg)
MDS460S-17	13	464	17	246,5	6BTAA5.9	4600	3500	1800	2230	3500
MDS620S-17	17,4	621	17	246,5	6LTAA8.9	5300	4200	2170	2630	5200
MDS650S-19	18,2	650	19	275,5	QSL8.9	5300	4200	2170	2630	5200
MDS690S-20.4	19,4	693	20,4	295,8	6LTAA8.9	5300	4200	2170	2630	5200
MDS770S-21	21,6	771	21	304,5	6LTAA8.9	5300	4200	2100	2630	5280
MDS830S-18	23,2	830	18	261	6LTAA8.9	5300	4200	2100	2630	5280
MDS820S-25	23	821	25	362,5	QSM11	5300	4200	2100	2630	5600
MDS860S-20.4/17.3	24,2	864	20,4	295,8	QSL8.9	5300	4200	2100	2630	5280
MDS860S-20.4/17.3	24,2	864	17,3	250,85	QSL8.9	5300	4200	2100	2630	5280
MDS875S-23	24,5	875	23	333,5	QSM11	5300	4200	2100	2630	5600

Large Series (Low&Medium pressure)

Large Series (Low&Medium pressure)	FAD		Pressure		Engine model	Dimensional Date(mm)
Large Series (Low&Medium pressure)	m3/min	cfm	Bar	psig		length		width	height	weight(kg)
model	m3/min	cfm	Bar	psig		with tow bar	without tow bar	width	height	weight(kg)
MDS900S-14.2/10.5	25,1	896	14,2	205,9	6LTAA8.9	5300	4200	2100	2630	5280
MDS900S-14.2/10.5	25,2	900	10,5	152,25	6LTAA8.9	5300	4200	2100	2630	5280
MDS910S-14	25,6	914	14	203	6LTAA8.9	5300	4200	2100	2630	5280
MDS970S-10	27,2	971	10	145	QSL8.9	5300	4200	2100	2630	5280
MDS1011S-8.6	28,3	1011	8,6	124,7	QSL8.9	5300	4200	2100	2630	5280
MDS1054S-12	29,5	1054	12	174	QSL8.9	5300	4200	2100	2630	5280
MDS1250S-8.6	35	1250	8,6	124,7	QSL8.9	5300	4200	2100	2630	5280
MDS1400S-13	40	1400	13	188,5	QSZ13	6200	4700	2100	2630	5800
MDS1600S-10.3	45	1600	10,3	149,35	QSZ13	6200	4700	2100	2630	5800
MDS1785S-13	50	1785	13	188,5	QSZ13	6200	4700	2100	2630	5800
MDS2140S-10	60	2142	10	145	QSZ14	7400	5400	2230	2630	8400

Large Series (Medium&High pressure)

Large Series (Medium&High pressure)	FAD		Pressure		Engine model	Dimensional Date(mm)
Large Series (Medium&High pressure)	m3/min	cfm	Bar	psig		length		width	height	weight(kg)
model	m3/min	cfm	Bar	psig		with tow bar	without tow bar	width	height	weight(kg)
MDS900S-20	25,3	904	20	290	QSM11	5300	4200	2100	2630	5800
MDS960S-18	26,9	961	18	261	QSM11	5300	4200	2100	2630	5800
MDS1000S-35	28,2	1000	35	507,5	QSZ13	6200	4700	2100	2630	7200
MDS1089S-25	30,5	1089	25	362,5	QSZ13	6200	4700	2100	2630	7200
MDS1200S-24	33,6	1200	24	348	QSZ13	6200	4700	2100	2630	7200
MDS1250S-21	35	1250	21	304,5	QSZ13	6200	4700	2100	2630	7200
MDS1250S-25	35	1250	25	362,5	QSZ13	6200	4700	2100	2630	7200
MDS1250S-30	35	1250	30	435	WP17G770E302	6200	4700	2100	2630	7800
MDS1250S-35	35	1250	35	507,5	WP17G770E302	6200	4700	2100	2630	7800
MDS1250S-40	35	1250	40	580	WP17G770E302	6200	4700	2100	2630	7800
MDS1428S-18	40	1428	18	261	QSZ13	6200	4700	2100	2630	7200
MDS1428S-35	40	1428	35	507,5	TAD1643VE-B	7400	5500	2180	2650	10000
MDS1428S-40	40	1428	40	580	QSK19	7400	5500	2180	2650	10000
MDS1600S-25	44,8	1600	25	362,5	WP17G770E302	7400	5500	2180	2650	10000
